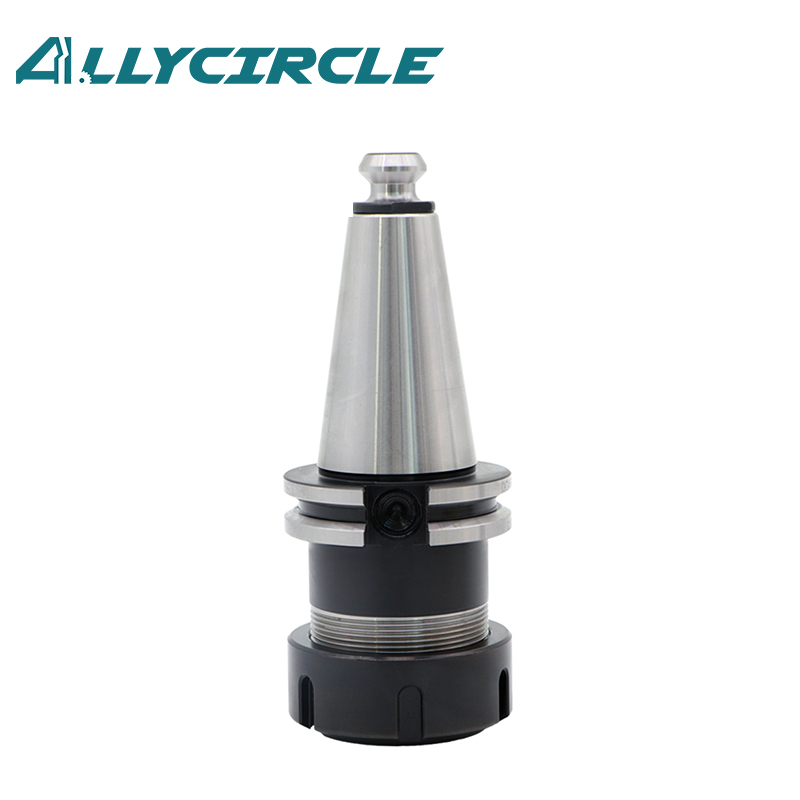

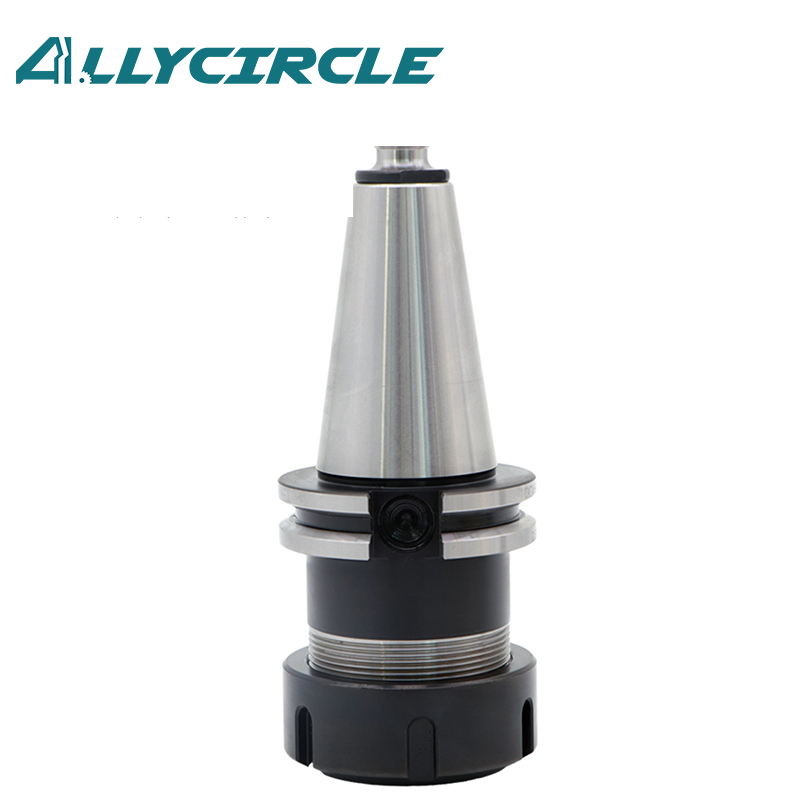

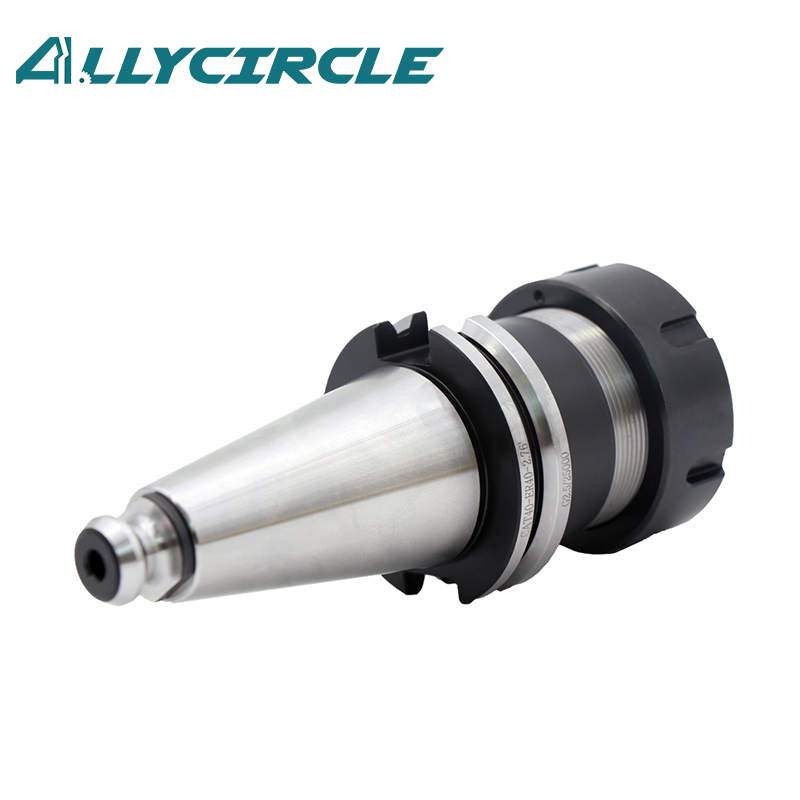

Portaherramientas CAT40
INQUIRY
CONTACT
PRODUCT DESCRIPTION

Característica


Precisión de conicidad0.8mm
Redondez<0.8um
Rugosidad de la superficieRa<0.5um




Balance dinámicoG2.5
Especificación del cuerpoDIN 69871
Material40Cr
durezaHRC48-50

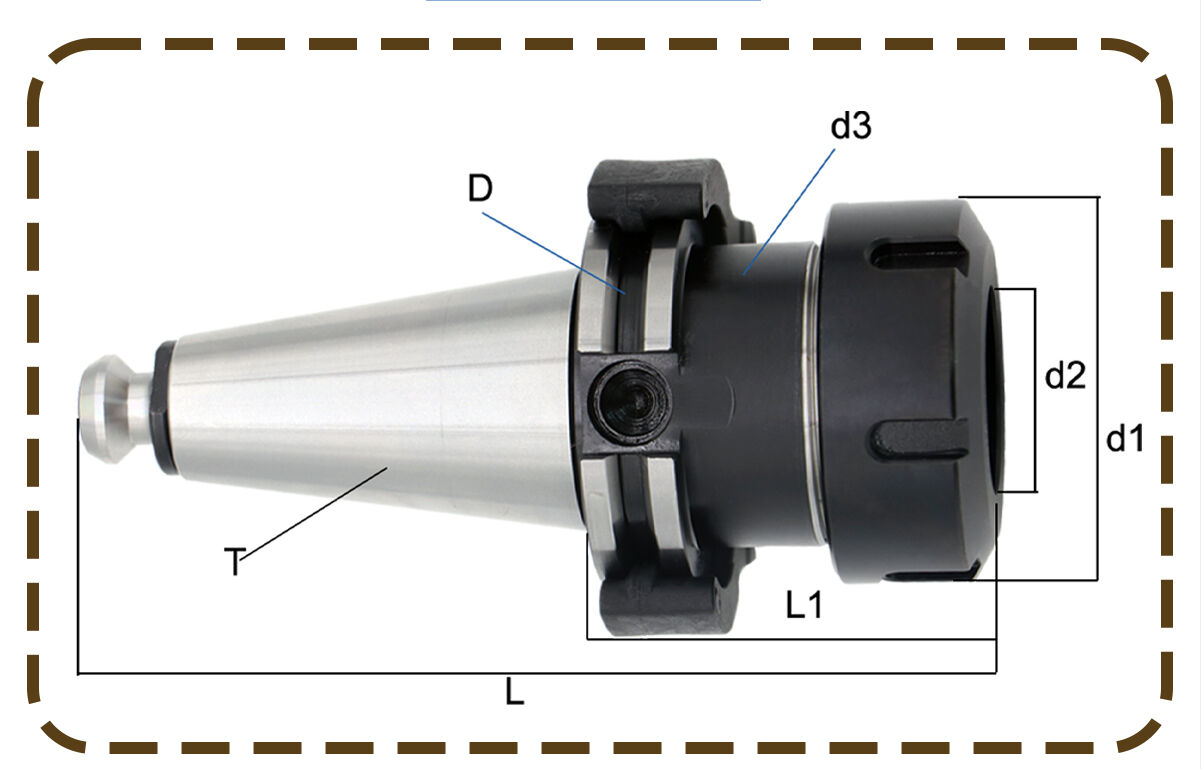

Dimensión





ModeloLL1Dd1d2d3T
CAT40-ER16-2.76"5.447 "2.76"2.5"1.102"0.63"1.75"M10*1.5P
CAT40-ER16-4"6.687"4"
CAT40-ER16-6"8.687"6"
CAT40-ER20-2.76"5.447"2.76"1.339"0.788"M12*1.75P
CAT40-ER20-4"6.687"4"
CAT40-ER25-2.76"5.447"2.76"1.654"0.984"M16*2.0P
CAT40-ER25-4"6.687"4"
CAT40-ER32-2.76"5.447"2.76"1.969"1.26"M16*2.1P
CAT40-ER32-4"6.687"4"
CAT40-ER32-6"9.687"6"
CAT40-ER40-3.15"5.837"3.15"2.48"1.575"M20*2.0P
CAT40-ER40-4"6.687"4"
CAT40-ER40-6"8.687"6"
CAT50-ER32-4"8"4"3.875"1.969"1.26"2.75"M16*2.0P
CAT50-ER32-6"10"6"

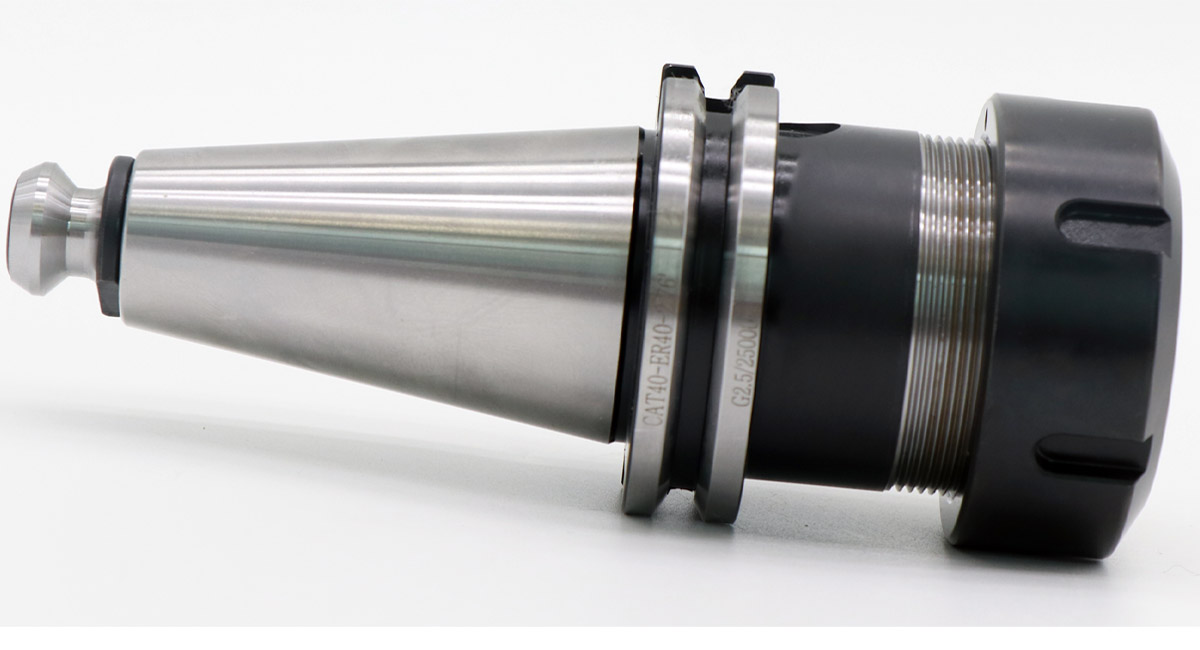

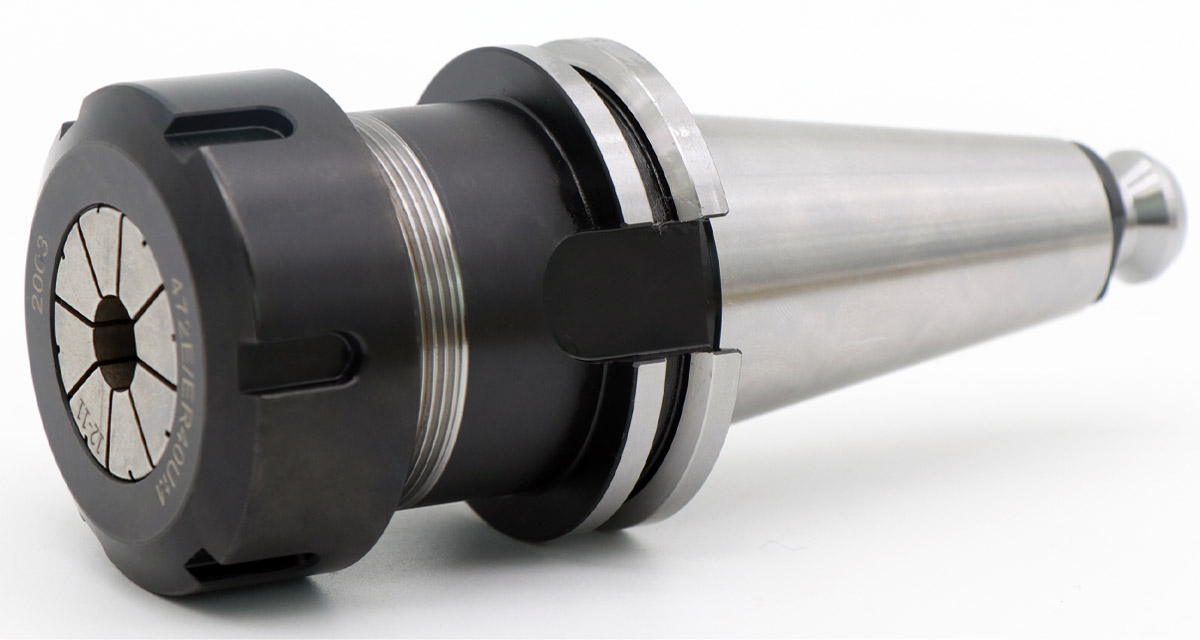

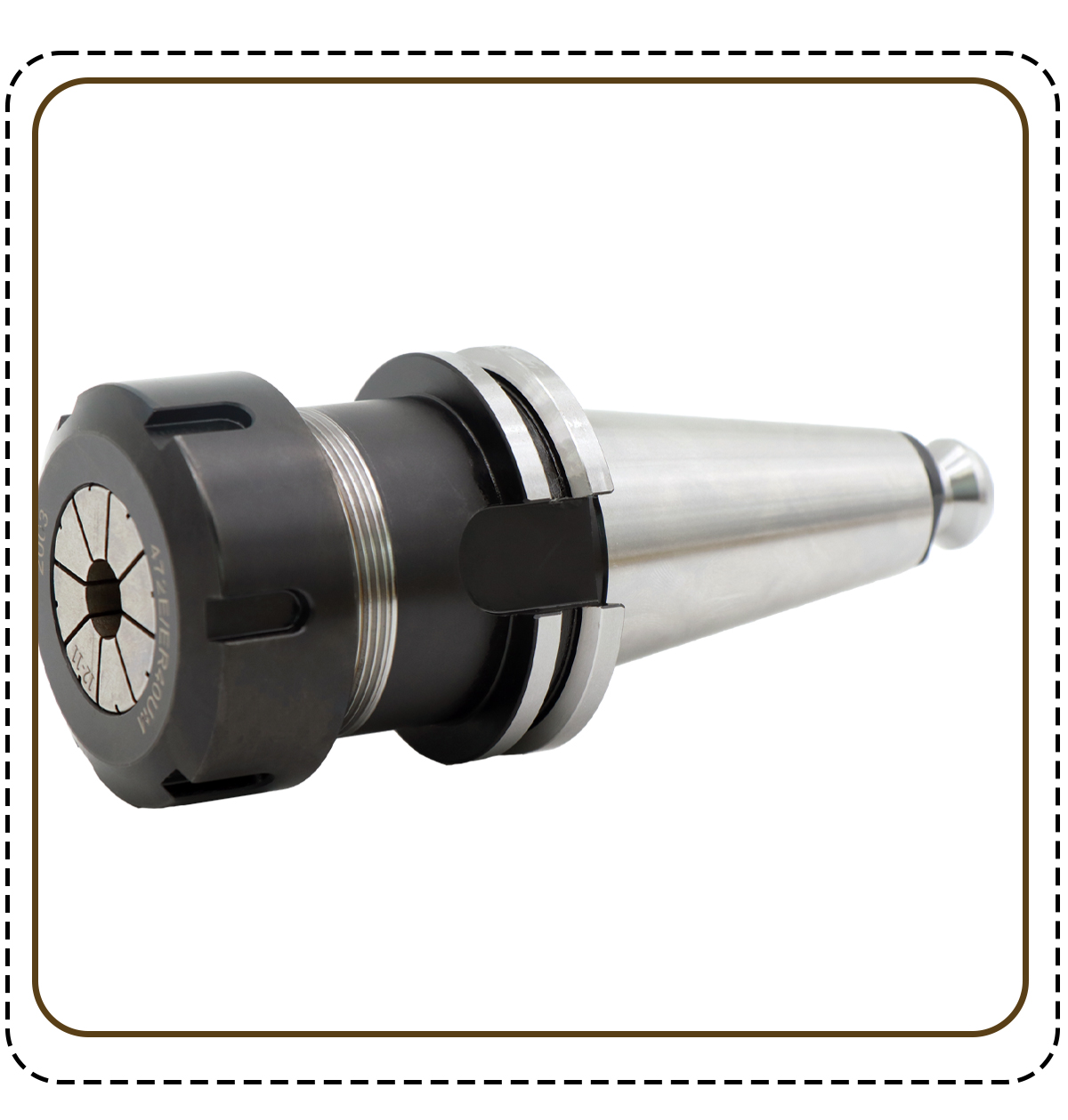

Fotos reales
